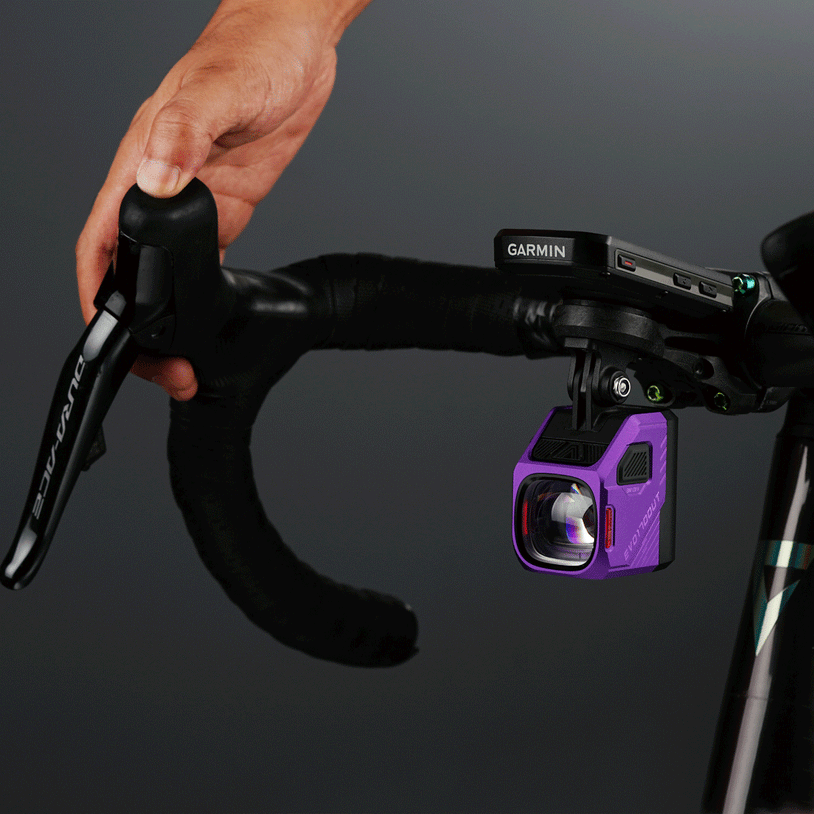

MagicShine EVO 1700 UT Head Light - Shimano Di2 / ANT+
MagicShine EVO 1700 UT Head Light - Shimano Di2 / ANT+
- Exclusive MagicLock system for fast, secure mounting.
- Large optical module with advanced optics and sleek design.
- Blue-coated lens for higher light transmission efficiency.
- Automotive-grade cut-off beam for wide, glare-free visibility.
- 1700LM high beam with 206M throw for faster riding confidence.
- Enhanced side visibility for improved road safety.
- ANT+ connectivity for seamless bike computer integration.
- Shimano Di2 control directly from shift levers.
- FTR LightSync syncs front and rear lights automatically (MJ-6558 remote control sold separately).
- Dual 18500 batteries (5200mAh) provide up to 17 hours runtime.
- USB-C fast charging in approximately 3 hours.
- IPX6 waterproof rating for all-weather performance.
- Smart lockout mode prevents accidental activation.
- Customizable modes, memory function, and battery indicator.
EVO 1700 UT SMART INTEGRATED BIKE LIGHT
EVO 1700 UT is a fully integrated, high-performance bike light system engineered for advanced road cyclists who demand precision, connectivity, and system-level control. Built as a flagship platform, it represents a new level of integration between lighting, drivetrain, and cycling electronics.

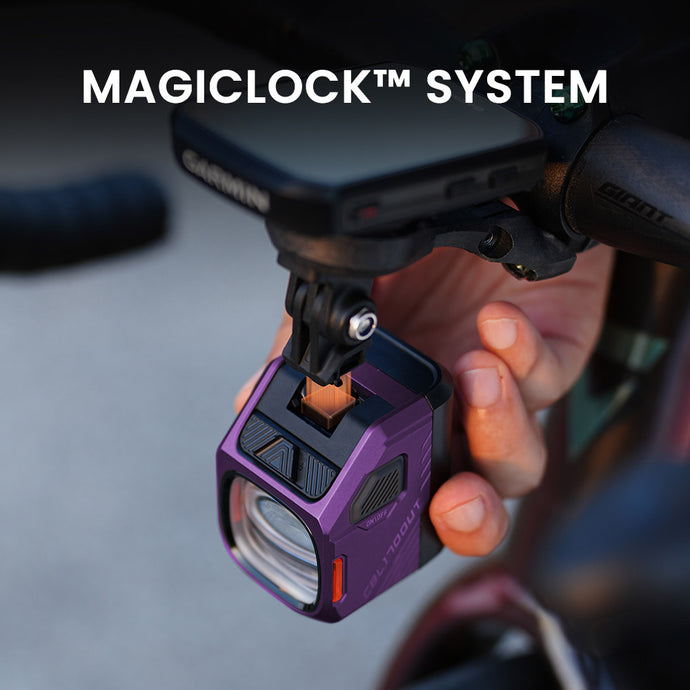

MAGICLOCK™ MOUNTING
Exclusive MagicLock™ system enables instant installation with secure, rock-solid retention on any ride.
1700LM DUAL-BEAM OUTPUT
1700 lm high beam reaches up to 206 m, while the cut-off beam delivers wide, glare-free road illumination.

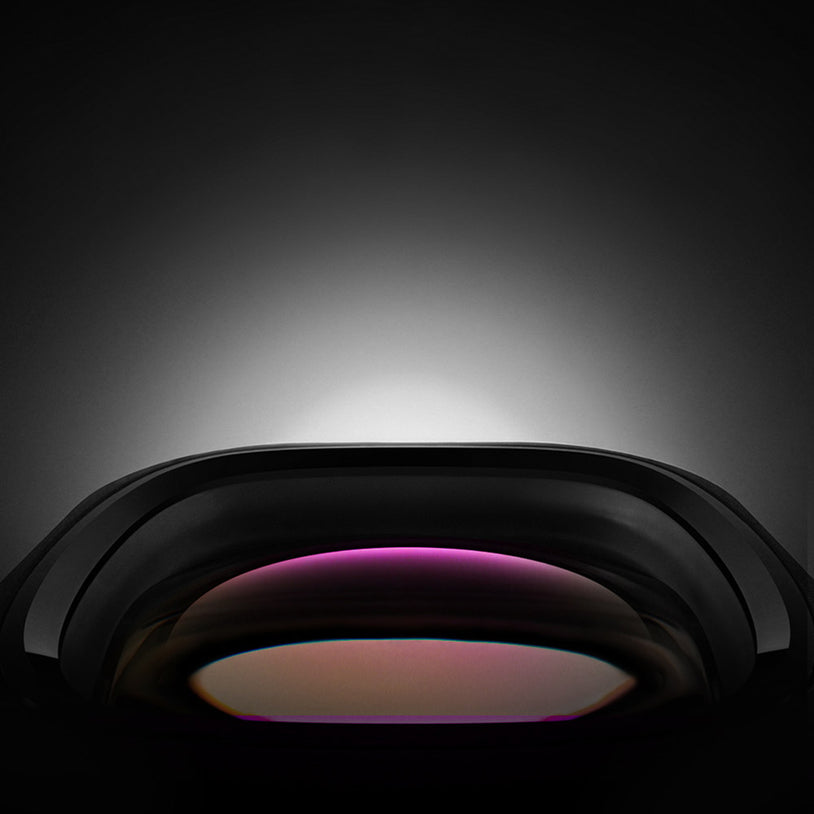

ADVANCED OPTICAL DESIGN
Large optical module with a blue-coated lens maximizes light transmission while enhancing visual performance.

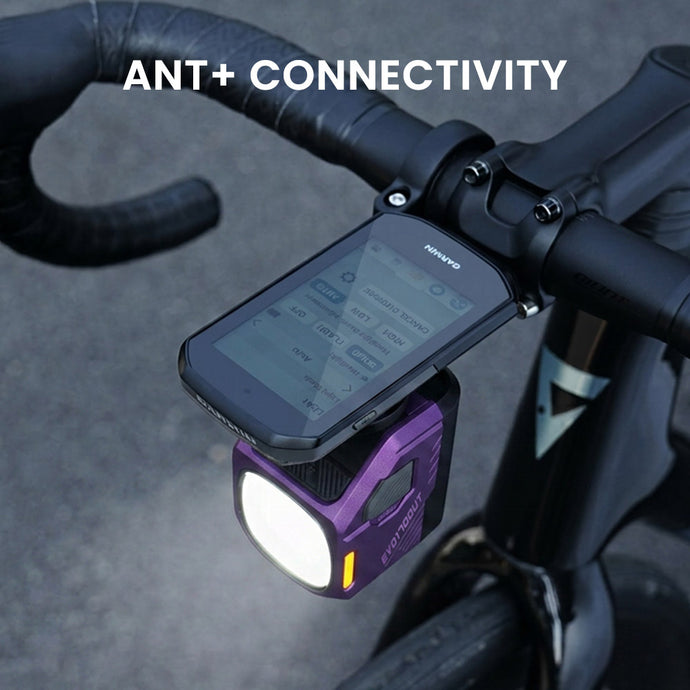

ANT+ CONNECTIVITY
Seamlessly connects with compatible bike computers for integrated lighting control and status monitoring.
FTR LIGHTSYNC CONTROL
Synchronizes compatible front and rear lights for a smarter, more connected lighting system.

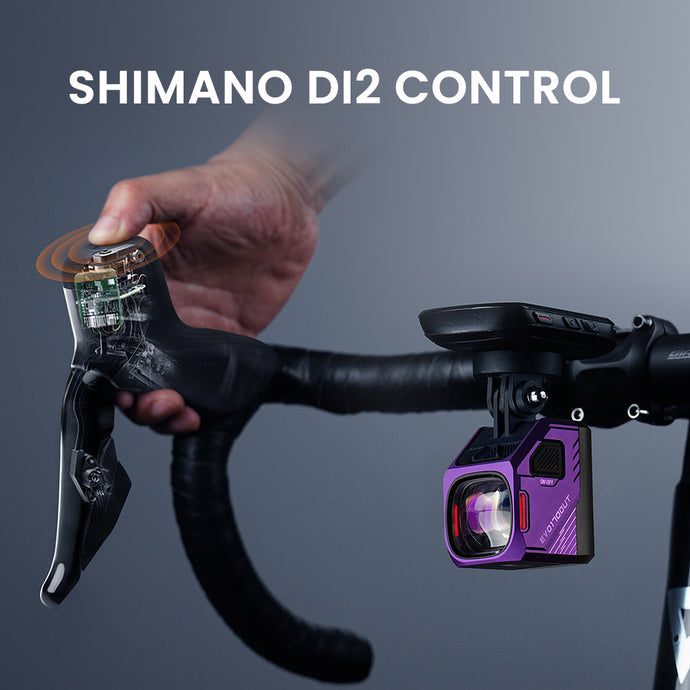

SHIMANO DI2 CONTROL
Operate the light directly from Shimano Di2 shift levers for effortless hands-on-bar control.
LONG RUNTIME & FAST CHARGING
Dual 18500 batteries (5200 mAh) provide up to 17 hours of runtime and recharge in just 3 hours via USB-C.

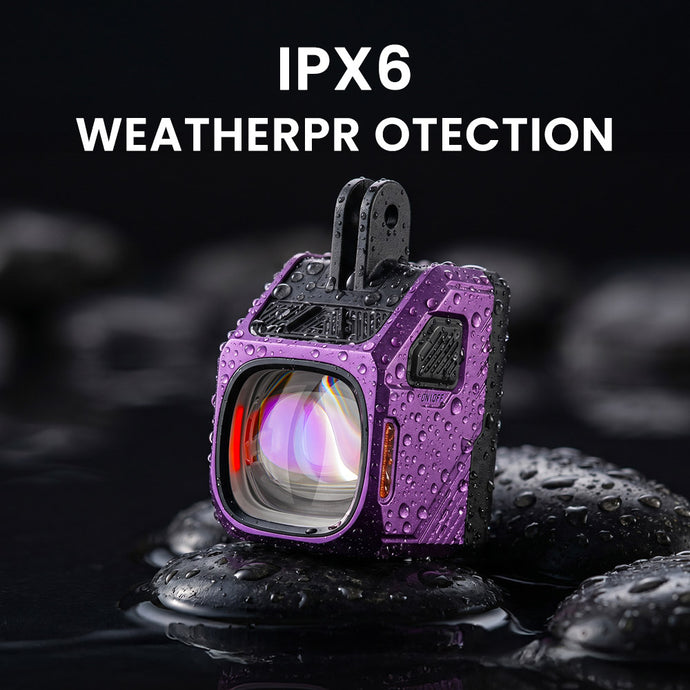

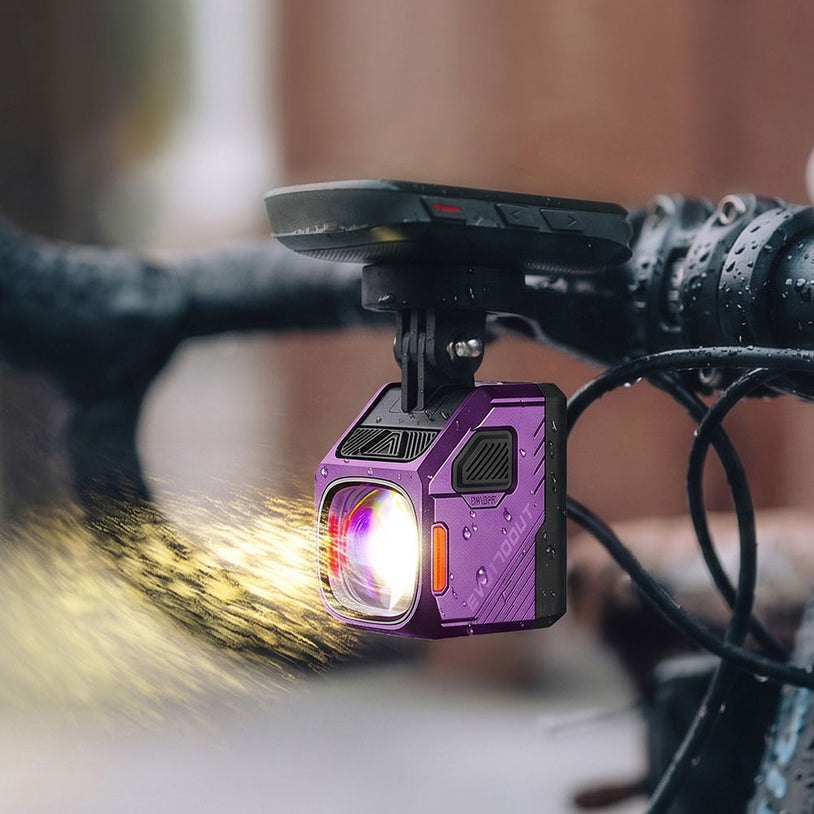

IPX6 WEATHER PROTECTION
IPX6-rated waterproof construction ensures reliable performance in rain and demanding riding conditions.
Enhanced Side Visibility
Enhanced side visibility improves safety in multi-angle traffic.
Light Mode
| MODE | LUMENS | TIME (h:min) | |
|---|---|---|---|
| LOW BEAM | LOW | 200LM | 17:00 |
| MEDIUM | 400LM | 09:00 | |
| HIGH | 800LM | 5:00 | |
| HIGH BEAM | LOW | 400LM | 10:00 |
| MEDIUM | 800LM | 05:00 | |
| HIGH | 1700LM | 03:00 | |
| FLASH | DAY FLASH | 0-1700LM | 10:30 |
| NIGHT FLASH | 400-1700LM | 6:00 | |
Specification
| MAX OUTPUT | 1700 LM |
| BATTERY CAPACITY | 3.6V 5200mAh |
| RUNTIME | 17 hours |
| CHARGING TIME | 3 hours (5V, 2A) |
| BEAM PATTERN | High beam + Low beam |
| BODY MATERIAL | Aluminum alloy + plastic |
| WATERPROOF | IPX6 |
| DIMENSIONS | 44*51*57 mm |
| WARRANTY | 2 years |
| WEIGHT | 175 g |
What's in the box
User Manual（Click to Download）
